2g RAM Gigabit Ethernet Switch Stackable S5721-28X-SI-24S-AC

Brand Name : OEM

Model Number : S5721-28X-SI-24S-AC

Place of Origin : Beijing, China

Packaging Details : box

Supply Ability : 10000 Set/Sets per Month

MOQ : 2 sets

Price : $200.00 - $800.00/sets

Products Status : Stock

Ports : 24

Transmission Rate : 10/100/1000Mbps

Function : LACP, Stackable, VLAN Support

Communication Mode : Full-Duplex & Half-Duplex

Switch Capacity : 336 Gbit/s

Product Name : S5720-SI Series Standard Gigabit Ethernet Switch S5721-28X-SI-24S-AC

Switching Capacity : 336 Gbit/s

Forwarding Performance : 108Mpps/126Mpps

Fixed Port : 24 *10/100/1,000 ports,

chassis height : 1U

Dimensions (W * D * H) : 442*420*44.4cm

Memory (RAM) : 2g

Flash : 240 MB

Extended Slot : 1

COLOR : Black

Port : Beijing

Contact Now

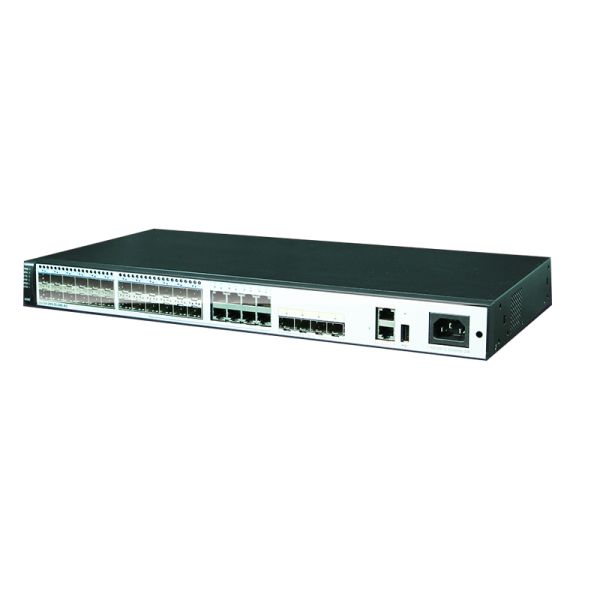

S5721-28X-SI-24S-AC Gigabit Ethernet Switch with 2g RAM and 442*420*44.4cm Dimensions

Products Description

S5720-SI Series Switches

Flexible Gigabit Ethernet switches that provide resilient, high-density Layer 3 switching for data centers. Features include

multiple-terminals, HD video surveillance, and video conferencing applications. Intelligent iStack clustering, 10 Gbit/s upstream

ports and IPv6 forwarding enable use as aggregation switches in enterprise campus networks.Next-generation reliability, security,

and energy-saving technologies make S5720-SI Series Switches easy to install and maintain, and an excellent source of low Total

Cost of Ownership (TCO).

2g RAM Gigabit Ethernet Switch Stackable S5721-28X-SI-24S-AC

Product model	S5720-28P-SI-AC	S5720-28X-SI-AC(DC) S5720-28X-PWR-SI-AC(DC)	S5720-28X-SI-24S-AC(DC) S5721-28X-SI-24S-AC	S5720-52P-SI-AC S5720S-52P-SI-AC
Switching Capacity	336 Gbit/s
Forwarding Performance	42 Mpps	96 Mpps	96 Mpps	78 Mpps
Fixed Ports	24 x 10/100/1,000 ports, 4 of which are dual-purpose 10/100/1,000 or SFP, 4 Gig SFP	24 x 10/100/1,000 ports, 4 of which are dual-purpose 10/100/1,000 or SFP, 4 x 10 Gig SFP+	24 x Gig SFP 8 of which are dual-purpose 10/100/1,000 or SFP, 4 x 10 Gig SFP+	48 x 10/100/1,000 ports, 4 Gig SFP
MAC Address Table	16K IEEE 802.1d compliance 16k MAC address entries MAC address learning and aging Static, dynamic, and black hole MAC address entries Packet filtering based on source MAC addresses
VLAN Features	4094 VLANs Guest VLAN, Voice VLAN GVRP MUX VLAN VLAN assignment based on MAC addresses, protocols, IP subnets, policies, and ports 1:1 and N:1 VLAN mapping
IP Routing	Static route, RIPv1/v2, RIPng, OSPF, OSPFv3, ECMP, IS-IS, IS-ISv6, BGP, BGP4+
SVF	Plug-and-play SVF client Automatic software and patch loading to clients One-click and automatic delivery of service configurations Independent client running
Interoperability	VLAN-based Spanning Tree (VBST) (interoperating with PVST, PVST+, and RPVST) Link-type Negotiation Protocol (LNP) (similar to DTP) VLAN Central Management Protocol (VCMP) (similar to VTP)

Product model	S5720-52X-SI-AC(DC) S5720-52X-PWR-SI-AC(DC) S5720-52X-PWR-SI-ACF S5720-52X-SI-48S S5720S-52X-SI-AC	S5720S-28P-SI-AC S5720S-28X-SI-AC
Switching Capacity	336 Gbit/s
Forwarding Performance	132 Mpps	P model:42 Mpps X model:96 Mpps
Fixed Ports	S5720-52X-SI-48S: 48 x Gig SFP, 2 of which are dual-purpose 10/100/1,000 or SFP, 4 x 10 Gig SFP+ Others: 48 x 10/100/1,000 ports, 4 x 10 Gig SFP+	P model: 24 x 10/100/1,000 ports, 4 x Gig SFP X model: 24 x 10/100/1,000 ports, 4 x 10 Gig SFP+
MAC Address Table	16K IEEE 802.1d compliance 16k MAC address entries MAC address learning and aging Static, dynamic, and black hole MAC address entries Packet filtering based on source MAC addresses
VLAN Features	4094 VLANs Guest VLAN, Voice VLAN GVRP MUX VLAN VLAN assignment based on MAC addresses, protocols, IP subnets, policies, and ports 1:1 and N:1 VLAN mapping
IP Routing	Static route, RIPv1/v2, RIPng, OSPF, OSPFv3, ECMP, IS-IS, IS-ISv6, BGP, BGP4+
SVF	Plug-and-play SVF client Automatic software and patch loading to clients One-click and automatic delivery of service configurations Independent client running
Interoperability	VLAN-based Spanning Tree (VBST) (interoperating with PVST, PVST+, and RPVST) Link-type Negotiation Protocol (LNP) (similar to DTP) VLAN Central Management Protocol (VCMP) (similar to VTP)

More Products

NETWOK ROUTER

NETWORK SWITCH

FIREWALL

MODLES

WIERLESS AC

WIERLESS AP

Company Profile

Certifications

Product packaging

FAQ

Q1: Can I get some samples?
A: Yes, sample order is available for quality check and market test. But you have to pay the sample cost and express cost.

Q2: Do you receive customized order?
A: Yes, ODM & OEM are welcomed.

Q3: What's the lead time.
A: According to the order quantity, small order usually need 3-5 days, big order need negotiation.

Q4: What's your warranty terms?
A: We supply 12 months warranty time.

Q5: What's your payment terms?
A: We receive Escrow, T/T, West Union, Cash and etc
